eUV fan boxes are equipped with plug fan and EC motors, high efficiency and low noise emission. Suitable for supply or extract ventilation system.
Optimized drawing for a flexible installation, allowing outside air on every directions.
Anodized aluminium 40 mm frame, polyurethane double 25 mm panels, pre-painted external sheet RAL 9002 and internal galvanized sheet.

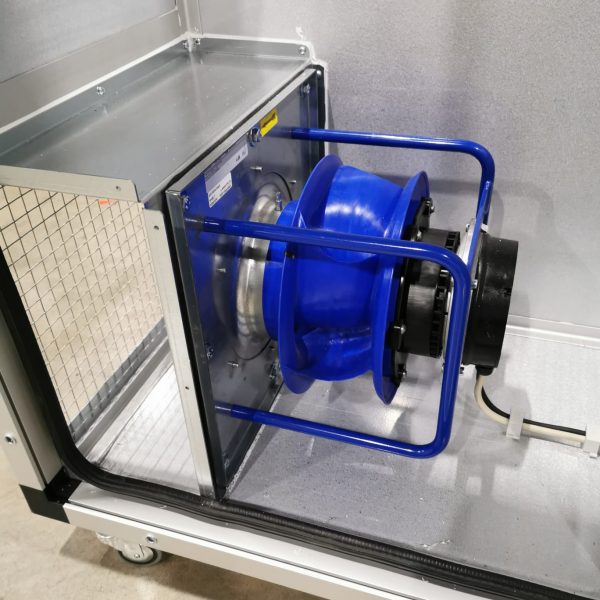

Plug fan type, single inlet, backward curved motorised impeller energy-optimised for operation without spiral housing using special threedimensional blade geometry with rotating bladeless diffuser for high efficiencies and favourable acoustic behaviour. Impeller made of high-strength composite material.
Meets the requirements for microbial inertness, therefore suitable for stricter hygiene requirements as well as clean rooms.
Galvanised sheet steel inlet ring with air flow meter.
Version with integrated ECblue technology.
Externally controllable speed setting via 0…10 V / PWM.
Overtemperature protection of the device electronics via active temperature management.
Protection class IP54, thermal class THCL155.
ErP 2015 Compliant, Motor efficiency class according to IE4 (Draft).
Motor/impeller statically and dynamically balanced according to ISO 1940 Part 1.
- Control module for differential airflow/pressure
- ON/OFF Safety switch
- Weatherproof cover
- Weather cowl extract/admission
- Flexible connection
